DARK KNIGHT NUUK 20″ LED BAR
Produktinformationen "DARK KNIGHT NUUK 20″ LED BAR"
- Type of lamp LED
- Type of LED LP
- PCS LED´s 12
- Voltage (V DC) 9-36V DC
- Theoretical effect (w) 12V 120
- Theoretical effect (w) 24V 120
- Consumption (w) 12V 94
- Consumption (w) 24V 94
- Consumption specific function (w) 12V White position light: 3
Amber position light: 3 - Consumption specific function (w) 24V White position light: 3.6
Amber position light: 3.6 - Theoretical lumen 11400
- Actual lumen 9500

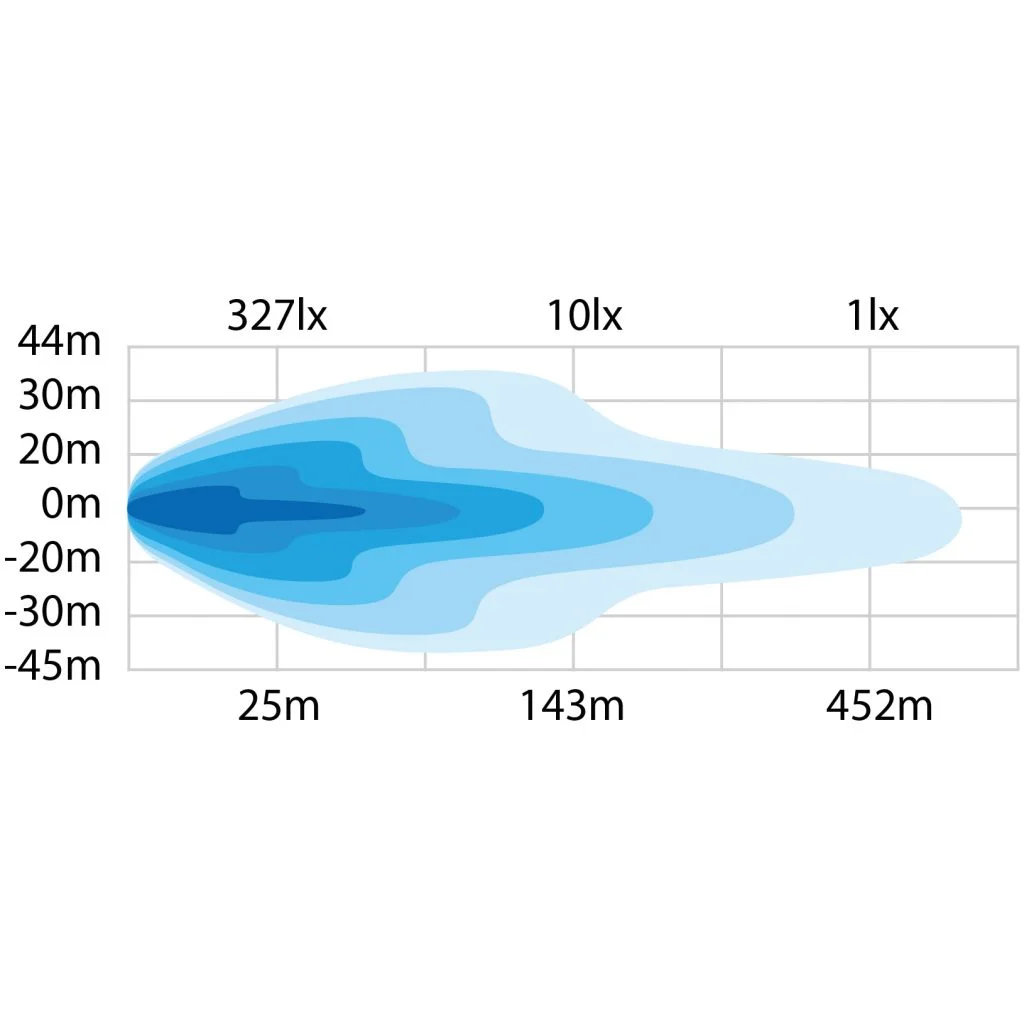

- 1 LUX @ m 452
- Kelvin 6000
- IP-class 68/69K
- Colour housing Black
- Colour lens Black
- Beam pattern Combo
- Position light Yes amber and white
- Connection DT4
- Cable length (mm) 500
- Material bracket Side bracket:
Stainless steel (SUS201)
Bottom bracket:
Aluminium (#6063) - Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 515
- Depth (mm) 69.8
- Height (mm) 38.5
- Height including bracket (mm) 51.3
- Operating temperature -40°C – +60°C
- ADR-approved No
- E-approved Yes
- According to regulation ECE R7 R112
- Reference number 40
- EMC ECE R10
Eigenschaften "DARK KNIGHT NUUK 20″ LED BAR"
| Fahrzeuge: | Ford Ranger 2AB 2016-2019, Ford Ranger 2AB 2019-2023, Ford Ranger 2AB 2023+, Ford Ranger Raptor, Isuzu D-Max ATFS/ATFR 2017-2019, Isuzu D-Max BTF 2020+, Mercedes X-Klasse, Mitsubishi L200 KJOT 2015-2019, Mitsubishi L200 KJOT 2019+, Nissan Navara D23 2016+, Toyota Hilux AN1P 2016-2020, Toyota Hilux AN1P 2020+, Toyota Hilux N2 2011-2016, Toyota Land Cruiser J15 2000+, VW Amarok 2H 2010-2023, VW Amarok 2023+ |
|---|
