Strands Diamond 14″ LED bar 9-36V DC, 60W, IP68, spot

141,61 €*

Produktnummer: 809153
Gewicht: 1.4 kg
Produktinformationen "Strands Diamond 14″ LED bar 9-36V DC, 60W, IP68, spot"
  • Type of lamp LED
  • Type of LED LG
  • PCS LED´s 12
  • Voltage (V DC) 9-36V DC
  • Theoretical effect (w) 12V 60
  • Theoretical effect (w) 24V 60
  • Consumption (w) 12V 46
  • Consumption (w) 24V 40.8
  • Theoretical lumen 5400
  • Actual lumen 4600

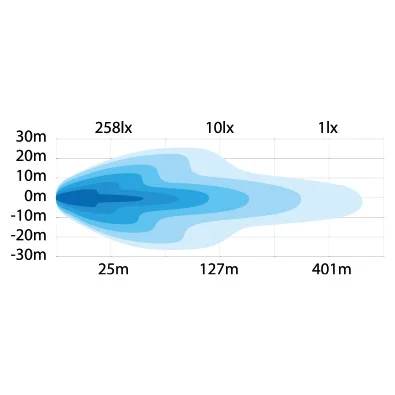

  • 1 LUX @ m 401
  • Kelvin 6500
  • IP-class 68
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White
  • Beam pattern Combo
  • Position light No
  • Connection DT
  • Cable length (mm) 500
  • Material bracket Side bracket: Stainless steel
    Bottom bracket: Aluminium
  • Material housing/chassi Aluminium
  • Material lens Polycarbonate
  • Length (mm) 356
  • Depth (mm) 81
  • Height (mm) 38.5
  • Height including bracket (mm) 54.2
  • Operating temperature -40 – +60°C
  • ADR-approved No
  • E-approved  YES
  • According to regulation ECE R112
  • Reference number 30
  • EMC ECE R10
Eigenschaften "Strands Diamond 14″ LED bar 9-36V DC, 60W, IP68, spot"
Fahrzeug: Ford Ranger 2AB 2016-2019, Ford Ranger 2AB 2019-2023, Isuzu D-Max ATFS/ATFR 2017-2019, Isuzu D-Max BTF 2020+, Mercedes X-Klasse, Mitsubishi L200 KJOT 2015-2019, Mitsubishi L200 KJOT 2019+, Nissan Navara D23 2016+, Toyota Hilux AN1P 2016-2020, Toyota Hilux AN1P 2020+, Toyota Hilux N2 2011-2016, Toyota Land Cruiser J15 2000+, VW Amarok 2H 2010-2023, VW Amarok 2023+
